TIME SLIP CHASER ,SMACK TALKING ,THREAD HIJACKING,HP TUNER , HELLNO THATS ME

OP
hellno

hellno

3000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#1308
Messages
3,309
Reactions
5,754
Likes
302
City
memphis
State
TN
Country
United States
Vehicle
2016 challenger hellcat
Thread Starter #221

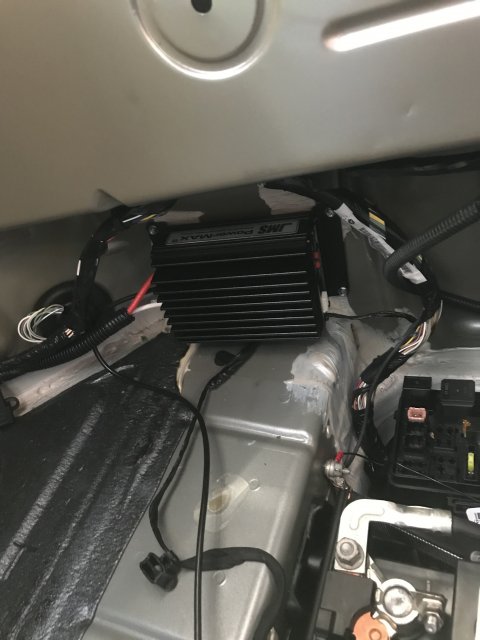

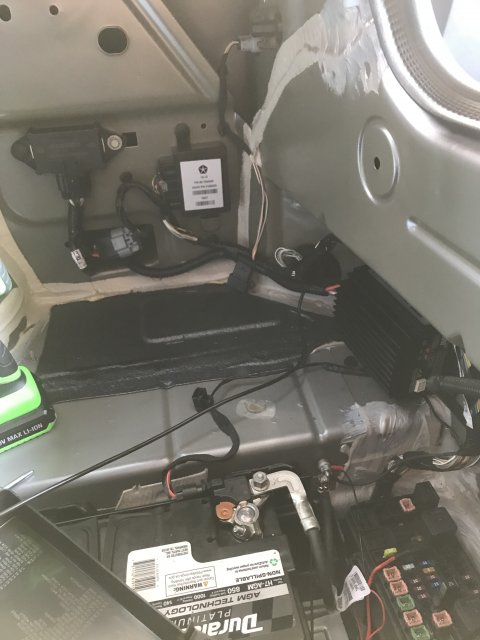

Just installed the JMS BAP EASY Install plug and play for our hellcat I did some research and there was no negative info on these that I could find A245EC99-B179-41DC-BA78-EC47E4CD2919.jpeg 726E7BC7-C26C-4C0D-8617-200991E2063D.jpeg



Speedy!

Infomercial Producer
Staff Team
Founding Member
U.S. Marine Veteran
9 Second Best E/T
HFCOTM & HFCOTY
Member ID
#1070
Messages
6,069
Reactions
15,536
Likes
402
City
Murfreesboro
State
TN
Country
United States
Vehicle
2016 Hellcat Go Man Go
So like no cutting wires plug and play? That might be an interesting option. Is it boost referenced or how is it activated?



OP
hellno

hellno

3000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#1308
Messages
3,309
Reactions
5,754
Likes
302
City
memphis
State
TN
Country
United States
Vehicle
2016 challenger hellcat
Thread Starter #223
So like no cutting wires plug and play? That might be an interesting option. Is it boost referenced or how is it activated?
No wire cutting at all and it plugs into the fpcm and at the pedal it uses the throttle reference as to when to activate I’m setting mine to come on at 50%throttle and it ramps up from there to 100% when it’s wot I’m about to go make a couple of hits and log it to see how it does



OP
hellno

hellno

3000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#1308
Messages
3,309
Reactions
5,754
Likes
302
City
memphis
State
TN
Country
United States
Vehicle
2016 challenger hellcat
Thread Starter #224
ok I did some logs a few hits up to 6500 wot the fuel pressure will hold 90-92 psi
it of course brought the injector duty cycle down to where it didn't go over 77 and the fuel pump duty cycle never went over 72%,i believe its no difference from added pressure through the tune except your fuel pump duty cycle is going to rise up if not max out at times out when that is done ,regular driving the JMS doesn't turn on ,if it continues like it is im one happy camper



Mean Cat

4000 Posts Club
Founding Member
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#997
Messages
4,981
Reactions
9,435
Likes
302
City
Houston
State
TX
Country
United States
Vehicle
2017 Challenger Hellcat
ok I did some logs a few hits up to 6500 wot the fuel pressure will hold 90-92 psi
it of course brought the injector duty cycle down to where it didn't go over 77 and the fuel pump duty cycle never went over 72%,i believe its no difference from added pressure through the tune except your fuel pump duty cycle is going to rise up if not max out at times out when that is done ,regular driving the JMS doesn't turn on ,if it continues like it is im one happy camper
Could a BAP be used instead of bigger fuel injectors when just going to a 2.85 or lower pulley ?



Mean Cat

4000 Posts Club
Founding Member
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#997
Messages
4,981
Reactions
9,435
Likes
302
City
Houston
State
TX
Country
United States
Vehicle
2017 Challenger Hellcat
What is the differences between the JMS & the KB one ? …. cause you were looking at the KB.



OP
hellno

hellno

3000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#1308
Messages
3,309
Reactions
5,754
Likes
302
City
memphis
State
TN
Country
United States
Vehicle
2016 challenger hellcat
Thread Starter #227
Could a BAP be used instead of bigger fuel injectors when just going to a 2.85 or lower pulley ?
I’m not sure but your tuner would know the answer to that besides the demon injectors are about the same cost
I would be curious how much fuel pressure the demon runs and if it uses the same pump



OP
hellno

hellno

3000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#1308
Messages
3,309
Reactions
5,754
Likes
302
City
memphis
State
TN
Country
United States
Vehicle
2016 challenger hellcat
Thread Starter #228
Is curt @ injected the same curt @dusteroff ???



Mean Cat

4000 Posts Club
Founding Member
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#997
Messages
4,981
Reactions
9,435
Likes
302
City
Houston
State
TX
Country
United States
Vehicle
2017 Challenger Hellcat
I believe so.



OP
hellno

hellno

3000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#1308
Messages
3,309
Reactions
5,754
Likes
302
City
memphis
State
TN
Country
United States
Vehicle
2016 challenger hellcat
Thread Starter #230

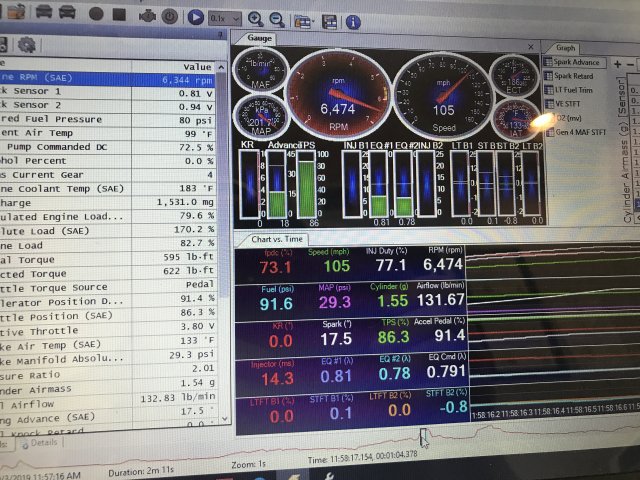

Here’s a screenshot of the log E4F49DE0-EAF2-4E8C-95AF-86FA39EC6A84.jpeg



Mean Cat

4000 Posts Club
Founding Member
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#997
Messages
4,981
Reactions
9,435
Likes
302
City
Houston
State
TX
Country
United States
Vehicle
2017 Challenger Hellcat
So are you gonna check your fuel pump from time to time to make sure you don't have any more rubber or coffee :LOL: in the tank any more ?



OP
hellno

hellno

3000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#1308
Messages
3,309
Reactions
5,754
Likes
302
City
memphis
State
TN
Country
United States
Vehicle
2016 challenger hellcat
Thread Starter #232
What is the differences between the JMS & the KB one ? …. cause you were looking at the KB.
curt suggested the jms and I happy he did it doesn't have to have a boost reference like the kb and with the kb I would have had to buy the extra adapter to put a pressure switch at the supercharger meaning that ugly wire harness addition under the hood look ,the jms was a no brainer,, cost was about 100 more but for not having to run wires thru the dash ,I was sold also the fact that no negative found on the site



OP
hellno

hellno

3000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#1308
Messages
3,309
Reactions
5,754
Likes
302
City
memphis
State
TN
Country
United States
Vehicle
2016 challenger hellcat
Thread Starter #233
So are you gonna check your fuel pump from time to time to make you don't have any more rubber or coffee :LOL: in the tank any more ?
im cleaning the tank today lol



OP
hellno

hellno

3000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#1308
Messages
3,309
Reactions
5,754
Likes
302
City
memphis
State
TN
Country
United States
Vehicle
2016 challenger hellcat
Thread Starter #234
this is an old post I found about the stock pumps as well

Also, keep in mind that stock there is a hard 89% duty cycle limit on the pumps in both the hellcats and demons so if your tuner doesn't know how to open that up you will be limited to 89% on the pumps.









OP
hellno

hellno

3000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#1308
Messages
3,309
Reactions
5,754
Likes
302
City
memphis
State
TN
Country
United States
Vehicle
2016 challenger hellcat
Thread Starter #235
im so snake bit with the trash in that tank that even after I clean it I will check it lol



OP
hellno

hellno

3000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#1308
Messages
3,309
Reactions
5,754
Likes
302
City
memphis
State
TN
Country
United States
Vehicle
2016 challenger hellcat
Thread Starter #236
stop giving me shit meancat I cant help it if my car like expresso



Speedy!

Infomercial Producer
Staff Team
Founding Member
U.S. Marine Veteran
9 Second Best E/T
HFCOTM & HFCOTY
Member ID
#1070
Messages
6,069
Reactions
15,536
Likes
402
City
Murfreesboro
State
TN
Country
United States
Vehicle
2016 Hellcat Go Man Go
Man we need to teach you to edit a single post LOL

17.5 deg of ign advance on 93 octane? WOW

How is the throttle position wire connected? Is there a reference in the trunk or ? I've not been a BAP fan, but this plug and play deal is pretty cool.

I'm not familiar with the 89% limit on the stock pump. In the tune you can easily see 100% is commanded.



Hpindy

4000 Posts Club
Founding Member
9 Second Best E/T
HFCOTM
Member ID
#974
Messages
4,869
Reactions
11,001
Likes
302
City
Jackson's Point
State
Non-US
Country
Canada
Vehicle
2018 challenger hellcat
Man we need to teach you to edit a single post LOL

17.5 deg of ign advance on 93 octane? WOW

How is the throttle position wire connected? Is there a reference in the trunk or ? I've not been a BAP fan, but this plug and play deal is pretty cool.

I'm not familiar with the 89% limit on the stock pump. In the tune you can easily see 100% is commanded.
I sure hope that is a race gas tune and race gas in the tank !

Sent from my BBF100-2 using Tapatalk



OP
hellno

hellno

3000 Posts Club
8 Second Best E/T
HFCOTM
Member ID
#1308
Messages
3,309
Reactions
5,754
Likes
302
City
memphis
State
TN
Country
United States
Vehicle
2016 challenger hellcat
Thread Starter #239
Man we need to teach you to edit a single post LOL

17.5 deg of ign advance on 93 octane? WOW

How is the throttle position wire connected? Is there a reference in the trunk or ? I've not been a BAP fan, but this plug and play deal is pretty cool.

I'm not familiar with the 89% limit on the stock pump. In the tune you can easily see 100% is commanded.
it jms comes with a harness that plugs directly into the pedal position sensor at the gas pedal I just ran it from the trunk under the carpets to the gas pedal it comes prewired everything connected perfectly the trunk looks normal no sign of the bap is showing ..also that 17.5 is race gas I still have race gas in it from the track .it runs 14.5 degrees on pump gas 93
also that quote came from injected engineering ,when you are seeing 100% on fuel pump its actually maxed out it shouldn't see 100



Speedy!

Infomercial Producer
Staff Team
Founding Member
U.S. Marine Veteran
9 Second Best E/T
HFCOTM & HFCOTY
Member ID
#1070
Messages
6,069
Reactions
15,536
Likes
402
City
Murfreesboro
State
TN
Country
United States
Vehicle
2016 Hellcat Go Man Go
Good info. I'm curious on this fuel pump deal now. Mine's set to 100% about 40% sooner than stock, so in my logs I see Commanded Fuel DC% and it shows 100.
