Turning on torque reserve on a 2015 Hellcat.

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,473
Reactions
8,460
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
#1
This is a crost post from the HP tuners forums (haven't gotten a reply on there but has 15 views so I got that going for me).
=====
So I've been looking at tinkering inside of HP Tuners and turning on torque reserve on my 2015 Challenger Hellcat. My first take was fake it till you make it and look at stock tunes that had it turned on and see if I could replicate that in my tune and test it at the track. I did a look in the tune repository and only found up to 2016 for stock Challenger Hellcats. These are the items I have identified inside of VCM Editor.

1. Turn on switch for Torque Reserve (47529)
2. Set the torque amounts per engines speed in the correct table (47501)

Are there any fueling requirements or spark modifiers that I would have to change? I'm sure this would all be apparent if I could find a stock tune that had this turned on and do a diff (best way I have learned so far). The car has a one-piece drive shaft and a differential brace. I also run 15PSI in my Hoosier bias ply so I do think that the drive train can take the hit. Any help would be appreciated. (I did look at a stock Demon file but don't know if those are numbers that I should go off of.)
=====

What I looked for in the HP Tuners repository was a 18 or newer Challenger stock tune so I could see the differences from my 15. Wanted to turn on torque reserve and test it at the track and see what it's like leaving under 4PSI of boost. Does anyone have a stock tune laying around that they would like to share? I have a stock Demon tune but I don't think the numbers are a good starting point as they might be too high.



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,473
Reactions
8,460
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #2
I also forgot to mention, I'm running bias ply tires, 28x10x17 Race Masters from Hoosier and have a one piece DSS direct fit along with a diff brace so I think the mechanical drive train can take a 4PSI hit.



BULL

Oh NO! Not that guy!
Staff Team
Founding Member
U.S. Marine Veteran
Donating Member
HFCOTM
Wiki Contributor
Member ID
#1079
Messages
14,556
Reactions
44,627
Likes
402
City
Weld County
State
CO
Country
United States
Vehicle
MY16 M6 Challenger Hellcat
HFCOTM
View Images
#3
Subd



2fast4u

500 Posts Club
Founding Member
Member ID
#1136
Messages
994
Reactions
2,501
Likes
132
City
Edwardsburg
State
MI
Country
United States
Vehicle
2018 Challenger Hellcat Widebody-DUMBO
#4
Watching with earnest.



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,473
Reactions
8,460
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #5
If anyone has a 2018 stock tune they'd like to donate it would be appreciated. I'm not trying to rip off a tune with values that someone put work in, not my style. Just want to do a diff on a stock tune with it turned on so I can try those settings on mine and give it a whirl at the track.



moparjim

1000 Posts Club
Founding Member
10 Second Best E/T
HFCOTM
Member ID
#1084
Messages
1,731
Reactions
4,306
Likes
212
City
Vaudreuil
State
Non-US
Country
Canada
Vehicle
2016 Challenger Hellcat
#6
@Hpindy might have one.



Speedy!

Infomercial Producer
Staff Team
Founding Member
U.S. Marine Veteran
9 Second Best E/T
HFCOTM & HFCOTY
Member ID
#1070
Messages
6,030
Reactions
15,385
Likes
402
City
Murfreesboro
State
TN
Country
United States
Vehicle
2016 Hellcat Go Man Go
#7
Mike from OST gave me a tune with it enabled in my 2016. Never got it to hook.



Hpindy

4000 Posts Club
Founding Member
9 Second Best E/T
HFCOTM
Member ID
#974
Messages
4,869
Reactions
11,001
Likes
302
City
Jackson's Point
State
Non-US
Country
Canada
Vehicle
2018 challenger hellcat
#8
You can use the perimeters from a 2018 and up hellcat to enable it . It will give a torque reserve of 4 psi on a stock car .

Sent from my BBF100-2 using Tapatalk



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,473
Reactions
8,460
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #9
I did some more diggin on the hptuners forums, found an A8 Stock Tune. Here are the values from my 2015:

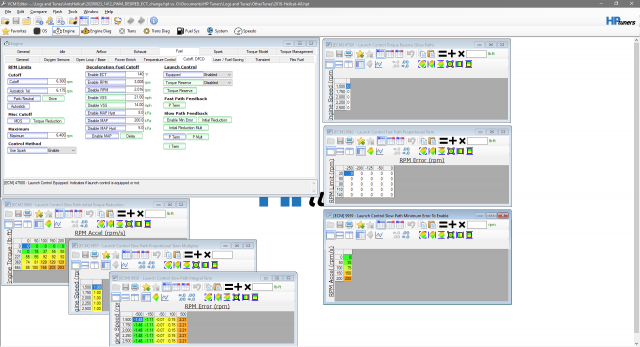

Here are the values from the 2018 A8:

And the diff:

The plan is when I get home to do a read, apply the values from the 2018 HC Challenger for the the Torque Reserve switch and all of the tables open in the screen shots. Then I plan to go to the local school parking lot while empty and see how it performs through logging. Looking forward for this to be enabled and usable at the track, would be cool a nice to have as I have grown quite fond of launch control.



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,473
Reactions
8,460
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #10
The plan is when I get home to do a read, apply the values from the 2018 HC Challenger for the the Torque Reserve switch and all of the tables open in the screen shots. Then I plan to go to the local school parking lot while empty and see how it performs through logging. Looking forward for this to be enabled and usable at the track, would be cool a nice to have as I have grown quite fond of launch control.
either that or I am going to get arrested for doing burnouts in the school parking lot...



Magnified

Poster Club Hall of Fame
Founding Member
Member ID
#1155
Messages
11,710
Reactions
19,827
Likes
352
City
West Texas
State
TX
Country
United States
Vehicle
2017 Charger HC (once upon a time)
#11

Magnified

Poster Club Hall of Fame
Founding Member
Member ID
#1155
Messages
11,710
Reactions
19,827
Likes
352
City
West Texas
State
TX
Country
United States
Vehicle
2017 Charger HC (once upon a time)
#12
Mike from OST gave me a tune with it enabled in my 2016. Never got it to hook.
I suspect this may be the reason it was left off. That it made launching just that much more difficult and seemed to add little to the stock car. But then again, weren't you fairly modded at that time?



Speedy!

Infomercial Producer
Staff Team
Founding Member
U.S. Marine Veteran
9 Second Best E/T
HFCOTM & HFCOTY
Member ID
#1070
Messages
6,030
Reactions
15,385
Likes
402
City
Murfreesboro
State
TN
Country
United States
Vehicle
2016 Hellcat Go Man Go
#13
We tried it stock with just a tune.



Hpindy

4000 Posts Club
Founding Member
9 Second Best E/T
HFCOTM
Member ID
#974
Messages
4,869
Reactions
11,001
Likes
302
City
Jackson's Point
State
Non-US
Country
Canada
Vehicle
2018 challenger hellcat
#14
Try both if you have time .

Sent from my BBF100-2 using Tapatalk



Speedy!

Infomercial Producer
Staff Team
Founding Member
U.S. Marine Veteran
9 Second Best E/T
HFCOTM & HFCOTY
Member ID
#1070
Messages
6,030
Reactions
15,385
Likes
402
City
Murfreesboro
State
TN
Country
United States
Vehicle
2016 Hellcat Go Man Go
#15
After blowing the tires off using launch control every time I tried it, I haven't used it in 3 years.



Phast Hemi

Active Member
Founding Member
Member ID
#1092
Messages
315
Reactions
620
Likes
67
City
SHELBY TOWNSHIP
State
MI
Country
United States
Vehicle
2019 Dodge Chall SRT Hellcat Redeye
#16
I also forgot to mention, I'm running bias ply tires, 28x10x17 Race Masters from Hoosier and have a one piece DSS direct fit along with a diff brace so I think the mechanical drive train can take a 4PSI hit.

Fast forward to how this story will end, as what you seek has already been done. The biggest issue is the 28" tall bias ply tire and 2015 do not have the ability to set LC in 100 rpm increments down to 1k. I tested this on a 28" radial on my 16 hellcat. You may be able to get LC to work, but leaving on boost aint gonna happen without smoking the tires or pushing through the beams.



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,473
Reactions
8,460
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #17

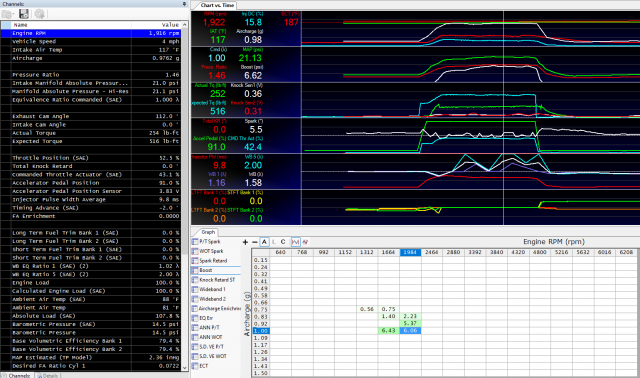

Some interesting results from today's parking lot tests. I started out by doing a diff of the 2018 Hellcat A8 file and applying all column and row axis values to the following launch control tables:

[ECM] 47501 - Launch Control Torque Reserve (Slow Path)
[ECM] 9962 - Launch Control Fast Path Proportional Term
[ECM] 9959 - Launch Control Slow Path Minimum Error To Enable
[ECM] 9960 - Launch Control Slow Path Initial Torque Reduction
[ECM] 9961 - Launch Control Slow Path Initial Torque Reduction Multiplier
[ECM] 9957 - Launch Control Slow Path Proportional Term Multiplier
[ECM] 9958 - Launch Control Slow Path Integral Term

I wrote the tune and then drove to the local school parking lot, just my luck a little league game was going on... fak!
So I pull into the lot on the other side of the field far away from people.

Left it at 2000 RPM for the first test, made a whopping 6PSI of boost... Started to spin. Also got scared shit less cause of the way the wide bands sensors were knocking around. Here is a screenshot:

I undid the work. Although I didn't spin in 1500 or 1750 rpms I realized that the row and column axis modifications might not be worth it for me they were also wildly off. So I decided to go a different route. Currently heading back to the spot, having a moment of genius.



fubar569

1000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1073
Messages
1,106
Reactions
1,569
Likes
162
City
Bradford
State
PA
Country
United States
Vehicle
2018 Charger Hellcat
#18
Try both if you have time .

Sent from my BBF100-2 using Tapatalk
That's the plan in my case.

I'm hoping that some big tire cars lay down some rubber for me first...otherwise I don't have high Hope's. It's an airstrip...so no prep...

After blowing the tires off using launch control every time I tried it, I haven't used it in 3 years.
Foot brake only for mr. speedy...you also run pretty consistent. Any tips?



fubar569

1000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1073
Messages
1,106
Reactions
1,569
Likes
162
City
Bradford
State
PA
Country
United States
Vehicle
2018 Charger Hellcat
#19
@fumanchu182 are you on the latest version of HPT?

That may be something you should update if you haven't. I've noticed some more things mapped for my 18 cal over the last version and so e things relabeled.

That may help in your quest.



OP
fumanchu182

fumanchu182

3000 Posts Club
Vendor
Premium Account
U.S. Navy Veteran
Donating Member
9 Second Best E/T
HFCOTM
Member ID
#2366
Messages
3,473
Reactions
8,460
Likes
302
City
Pasadena
State
MD
Country
United States
Vehicle
2015 Challenger SRT Hellcat
Thread Starter #20
Do you happen to have a stock read. I updated my HPT to 4.8 but the 2018 Hellcat A8 calibration might be stale. So I kinda fucked up. I had a good setup here.

Just went back and did more testing. Not a fan of this, I'm willing to leave launch control the way it is. Something I did notice is that the Demon Stock tune is more lined up with my 2015 Hellcat Stock tune... Wonder what that means. Scrapping all the tunes as Indont know what looks safe. Do you have any logs when you are on LC?
