Killer Chiller Install Help Wanted!

MurderCat

Active Member
Member ID
#3104
Messages
325
Reactions
697
Likes
67
City
Rochester
State
NY
Country
United States
Vehicle
Whipple Hellcat (Sold) 22 GMC 2500HD Denali
#1
Car is currently at the shop right now having issues with KC install.

-Dodge couldn't recharge the A/C system since everything goes by vin/computer system - Wouldn't allow more than factory R123yf. Shop car is at now has to buy equipment to do older R134a. - Warned the seals and compressor may fail after 5 years with the older stuff.

-Killer Chiller location doesn't look optimal/off IMO. Installer said he put it there for cooling - Requested in the crash beam or under the light. I think it's blocking airflow, what do you guys with kits installed think? Need to move it?

Been playing phone tag with KC and the shop since they couldn't get in contact with each other.....not having a good time o_O
Last thing holding the car back from being home! Any help or knowledge is appreciated.

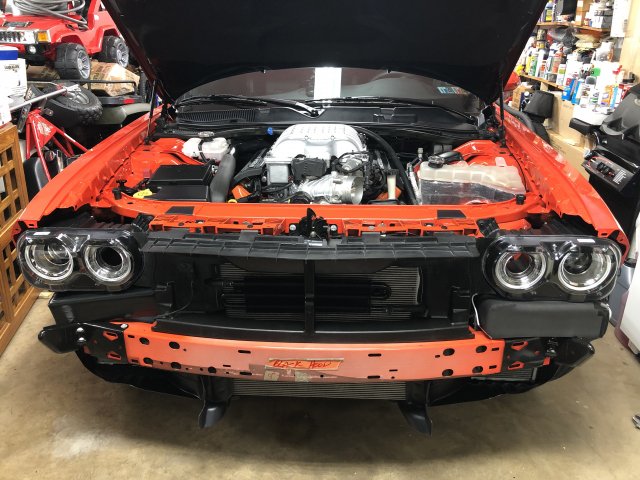

My Drive - Google Drive - Google Chrome 10_27_2020 3_11_01 PM (2).png

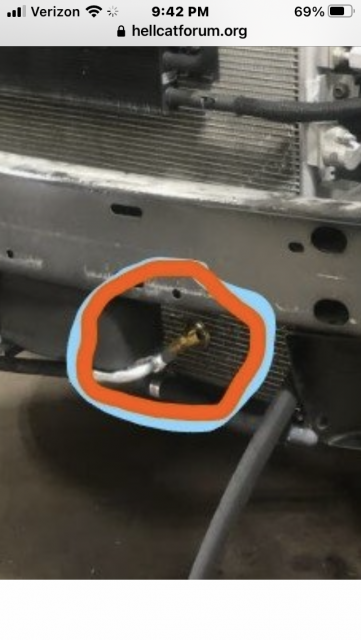

Not sure what this is going to or if it's just hanging there. My Drive - Google Drive - Google Chrome 10_27_2020 3_11_01 PM (3)_LI.jpg



zhc

Active Member
Founding Member
Premium Account
7 Second Best E/T
Member ID
#1019
Messages
371
Reactions
1,281
Likes
117
City
Houston
State
TX
Country
United States
Vehicle
2016 Dodge Charger Hellcat
#2
With KC installs, the biggest mistake one can make is in choosing a shop who has never done one of these on this platform before.

With that said, that KC core doesn't need to see any airflow on it. In fact, it's blocking some airflow to the a/c condenser which is a critical piece of proper a/c (and subsequently killer chiller) operation. I have my KC installed where my auxiliary heat exchanger used to be on the driver side. I also bypassed the primary as all it does is fight the KC when it's setup properly. The KC has the ability to drop I/C fluid temps far below ambient and all the primary heat exchange will do is heat it back up.

Most folks convert over to 134a because it's easier to get, is cheaper, and has nearly identical operating pressures as 1234yf. Something to note, there will be a need to adjust the charge level up or down from an initial charge for optimal performance and I typically do this based on observed vent temps and I/C temps over time. If you have too much freon charged, it will perform poorly. Likewise, if you are under charged, it will perform poorly. There's a happy narrow range that you want to be in and that range varies from install to install depending on hose length and heat load on the system.



OP
MurderCat

MurderCat

Active Member
Member ID
#3104
Messages
325
Reactions
697
Likes
67
City
Rochester
State
NY
Country
United States
Vehicle
Whipple Hellcat (Sold) 22 GMC 2500HD Denali
Thread Starter #3
Thank you ZHC. Very informative.

Agreed, definitely another mistake. Didn't know they've never installed a chiller before on top of not having any A/C equipment or else would have waited 100%. Said they'd take care of it and to go ahead with the order before all that was found out...too late now. Shop is a friend and recommendation of Dusterhoff tuning so trying to give benefit of the doubt...

Think they trimmed the front bumper already :confused: mentioned something about the grille hopefully its not noticeable... Gave pictures and rough details of install before the kit arrived but didn't go by them for some reason. KC has been really hard for them to contact apparently which adds to the install problems.

From what KC and you are saying the primary heat exchanger should be bypassed or deleted for best temps.

Sort of confused what valve setup to go with now. - Currently have a two way drag valve but would like to bypass the oem heat exchanger vs. deleting for normal driving when A/C is off. Guessing i need both the drag valve and 3 way? Two switches in the cabin?



zhc

Active Member
Founding Member
Premium Account
7 Second Best E/T
Member ID
#1019
Messages
371
Reactions
1,281
Likes
117
City
Houston
State
TX
Country
United States
Vehicle
2016 Dodge Charger Hellcat
#4
Drag valve is highly recommended, 3 way for bypassing the primary HX is optional. I found myself running my a/c all the time (a/c on with heat/defrost in the winter time) so I did away with my 3 way a long time ago. You can of course, do whatever you want and there's plenty of installs out there that incorporate a 3 way for the primary hx.



Hickster

4000 Posts Club
Founding Member
HFCOTM
Member ID
#781
Messages
4,892
Reactions
6,292
Likes
302
City
Seminole
State
FL
Country
United States
Vehicle
2018 Hellcat Challenger
#5
2 cents, in. No reason not to run this off 134A. None. Have been talking to another member and have come up with different issues. Tank, no, water no, heat exchangers are nothing more than your rad e ator and your cooling boxes. To a certain extent the cooler the engine the more HP will produce, certain extent. Why the new camero came out with 6. Be knowing the amount the C8 has. I would remove the HX tubing, add an air eliminator, or air extractor, cut back on the sharp 90 degree turns and use street 90s. All copper and silver soldered. A new introduction to the system. A variable speed drive, VFDs on the primary and secondary fans. As track persons go, this will take off the battery and other components off the primary system. Can drop this with a magnetic speed drive which will decrease the power not used to 10% of usage. Hope that helps.



16GoManGoHC2

3000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1139
Messages
3,291
Reactions
7,770
Likes
252
City
Nanticoke
State
PA
Country
United States
Vehicle
2016 Challenger He’ll Cat
#6
I guess you didn’t see all the pictures I posted on how I installed my drag size KC with HX bypass valve and drag valve and a1.2 gallon hopper tank and except for the insulated lines you’d never know it’s there? PM me a phone number and I’ll txt you LOTS of pictures including charge pressures with 134a



16GoManGoHC2

3000 Posts Club
Founding Member
9 Second Best E/T
Member ID
#1139
Messages
3,291
Reactions
7,770
Likes
252
City
Nanticoke
State
PA
Country
United States
Vehicle
2016 Challenger He’ll Cat
#7
PS, that “thing” hanging is the TXV valve, it controls how much liquid Freon is allowed into the HX to evaporate and get cold in that process. If the capillary line to it is kinked it’s not going to work at all. Look at it closely for such. Also it’s sensor must be tightly up against the inlet chilled water line so it can control the Freon flow correctly. 87134DF3-036C-4E04-A456-733E6A99C8D1.png



Hickster

4000 Posts Club
Founding Member
HFCOTM
Member ID
#781
Messages
4,892
Reactions
6,292
Likes
302
City
Seminole
State
FL
Country
United States
Vehicle
2018 Hellcat Challenger
#8
The evaparator needs to be sealed as the chill water lines. It is a closed system having to do with the air seperator and or extractor. It bleeds the air out of the system so not to get air locked in the pump. This system is pretty cool and works good as long as it is a closed system. The VSD, variable speed drive, is sumtin I thought, could be added to correct the load. Mentioned will drop to 10% of the load at set up and bump time.



OP
MurderCat

MurderCat

Active Member
Member ID
#3104
Messages
325
Reactions
697
Likes
67
City
Rochester
State
NY
Country
United States
Vehicle
Whipple Hellcat (Sold) 22 GMC 2500HD Denali
Thread Starter #9
I guess you didn’t see all the pictures I posted on how I installed my drag size KC with HX bypass valve and drag valve and a1.2 gallon hopper tank and except for the insulated lines you’d never know it’s there? PM me a phone number and I’ll txt you LOTS of pictures including charge pressures with 134a
I saw your posts just was a bit confused how it all works with two way and three way valves together. - Sent your thread over earlier today as its very detailed step by step. I think it will help out quite a bit.



Hickster

4000 Posts Club
Founding Member
HFCOTM
Member ID
#781
Messages
4,892
Reactions
6,292
Likes
302
City
Seminole
State
FL
Country
United States
Vehicle
2018 Hellcat Challenger
#10
Yepper, look forward to looking at them on Wed. Had medical problems today Friday and next week. Rays are loosing the World Series. Us. Will look at it on Wed and sea what we see. Remember closed cell is very im po tant/// no leaks.



jgilj

1000 Posts Club
9 Second Best E/T
Member ID
#1483
Messages
1,323
Reactions
10,982
Likes
162
City
Brooksville
State
FL
Country
United States
Vehicle
21 Challenger Super Stock
#11
Yepper, look forward to looking at them on Wed. Had medical problems today Friday and next week. Rays are loosing the World Series. Us. Will look at it on Wed and sea what we see. Remember closed cell is very im po tant/// no leaks.
Got 2 meets you some day Hickster I think we could gets along !😂



OP
MurderCat

MurderCat

Active Member
Member ID
#3104
Messages
325
Reactions
697
Likes
67
City
Rochester
State
NY
Country
United States
Vehicle
Whipple Hellcat (Sold) 22 GMC 2500HD Denali
Thread Starter #12

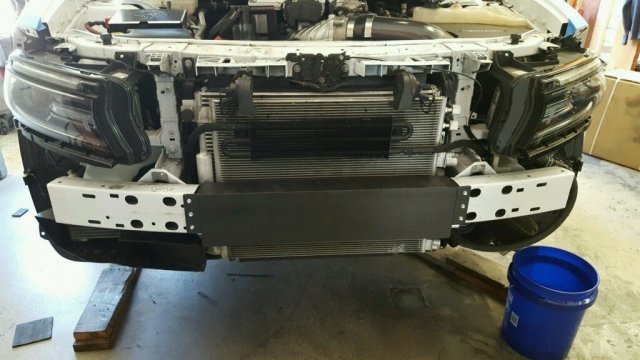

The installer wants to leave the killer chiller in front of the A/C condenser for airflow and to keep hoses facing down per Joe's instructions @ Kincaid.

My Drive - Google Drive - Google Chrome 11_3_2020 3_47_57 PM (2).png

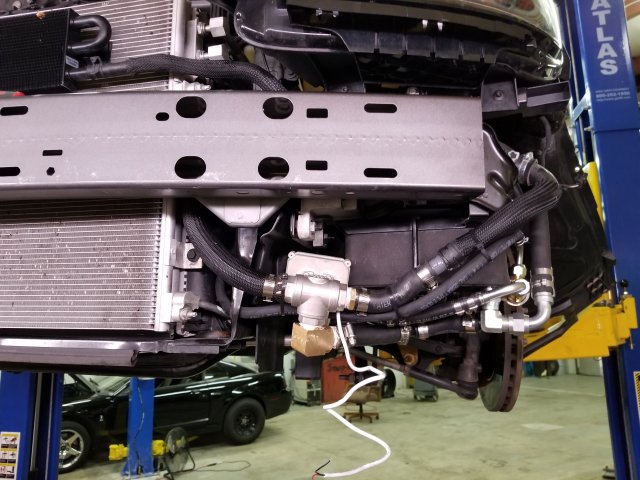

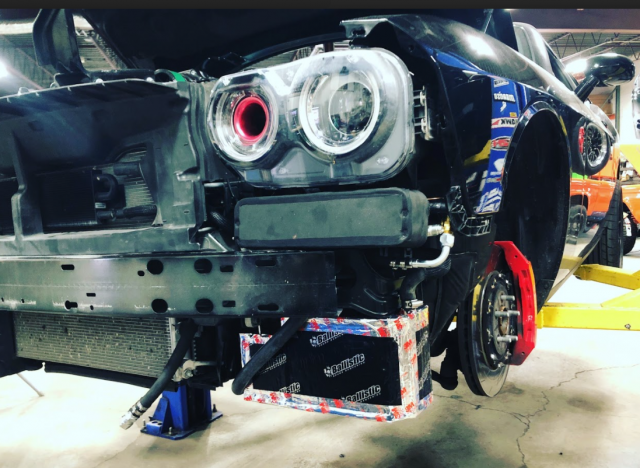

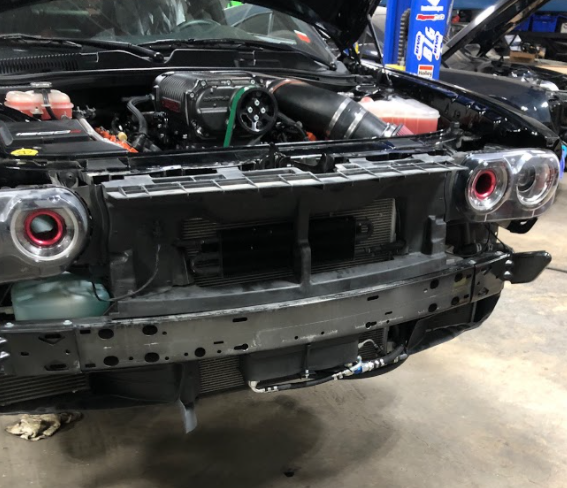

I sent pictures of two other cars, one with the chiller installed under the driver light and another where the new coolant box is located now, so that's off the table. Shop doesn't want to put it under the light since hoses will be oriented sideways. Thinking cutting into the crash beam is the next best option. Anyone have ideas? Should have more pictures of the custom coolant tank setup later tonight.
